Description:

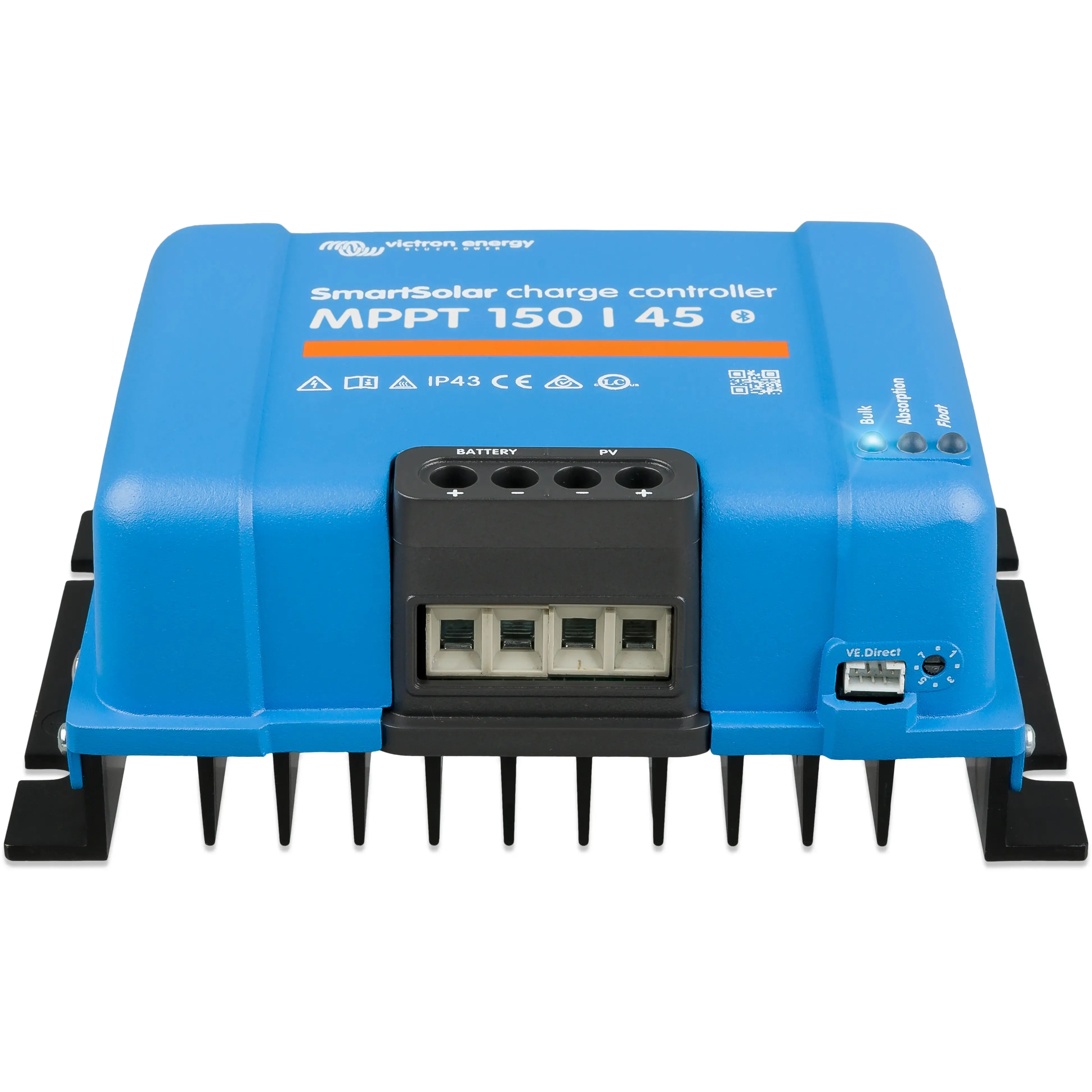

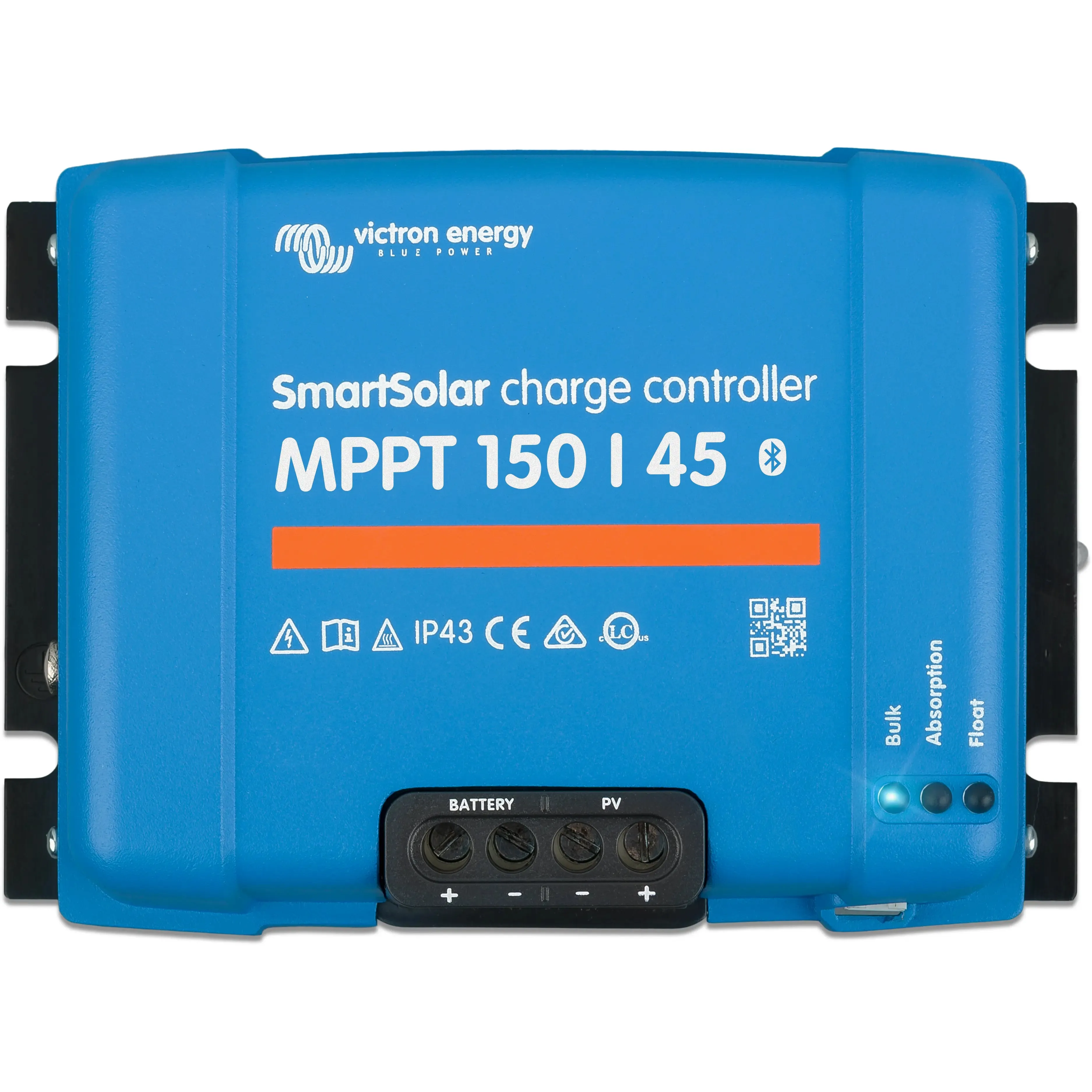

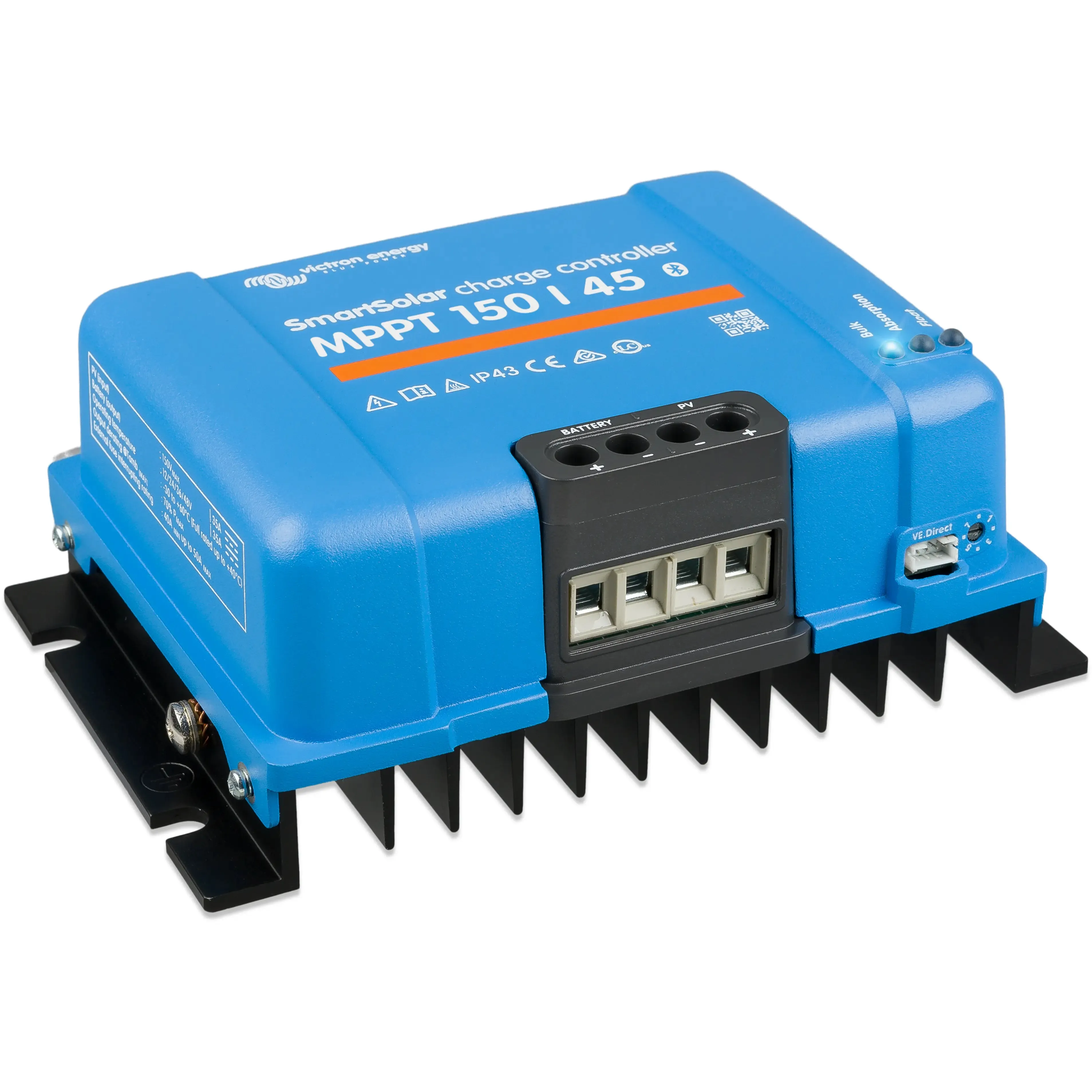

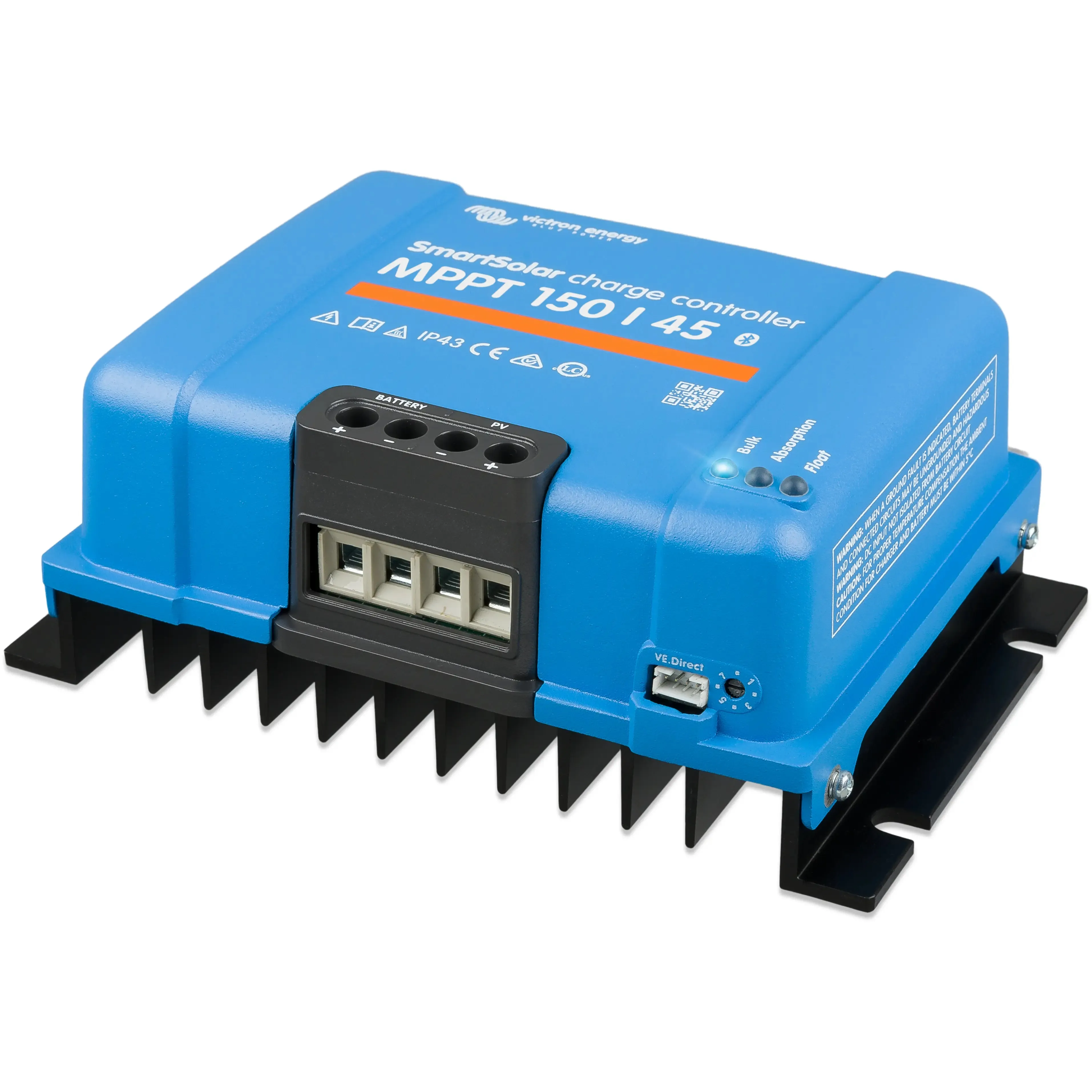

The Victron SmartSolar MPPT 150/45 (connections) is a high-performance solar charge controller designed to maximize the energy harvest from solar panels. This MPPT (Maximum Power Point Tracking) charge controller is ideal for large solar systems of up to 4500 watts. The SmartSolar technology ensures that your batteries are charged at the maximum efficiency rate, resulting in greater system autonomy and longer battery life.

Features:

• Advanced MPPT technology for maximum efficiency.
• Supports up to 4500 watts of solar panels.
• Highly efficient and reliable.
• Compatible with all lead-acid and lithium batteries.
• Integrated Bluetooth communication for easy monitoring and setup.
• Ultra-fast Maximum Power Point Tracking (MPPT).
• Suitable for 12V, 24V, and 48V battery systems.
• Remote monitoring and control via the VictronConnect app.
• Built-in VE.Direct port for easy connection to Victron devices.

Connections:

• Solar panel connection: MC4 connectors.
• Battery connection: M8 screw terminals.
• Load connection: M6 screw terminals.
• VE.Direct port: RJ45 connector.
• Communication port: USB-B.
