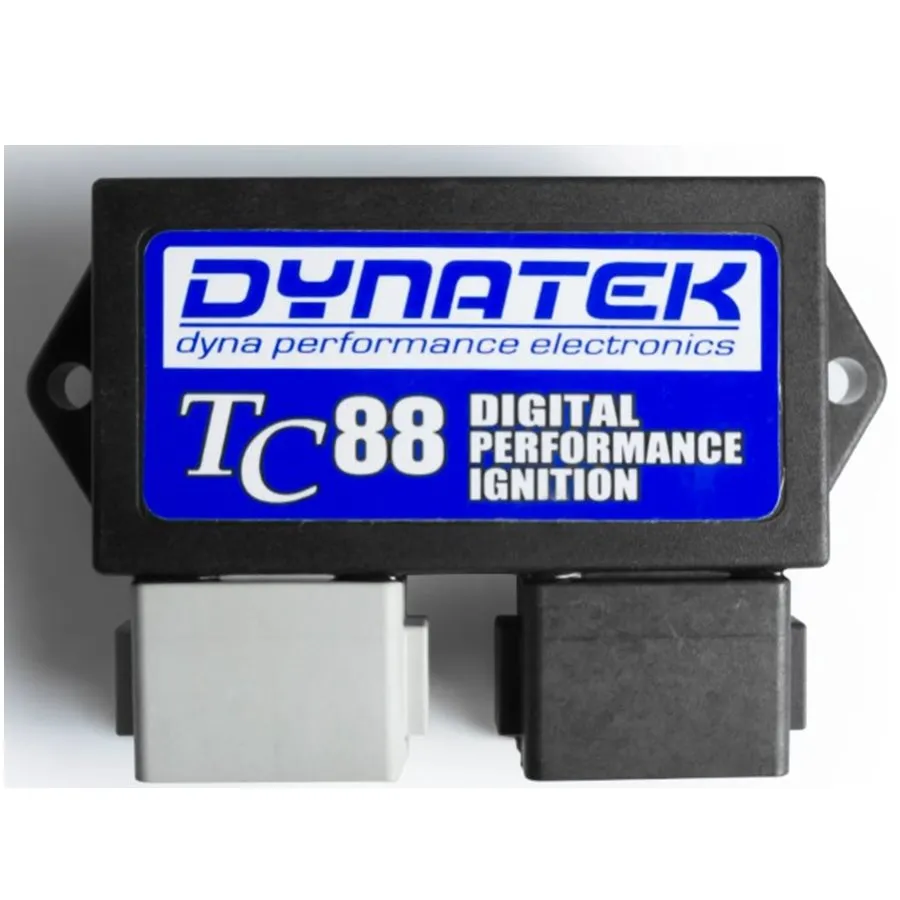

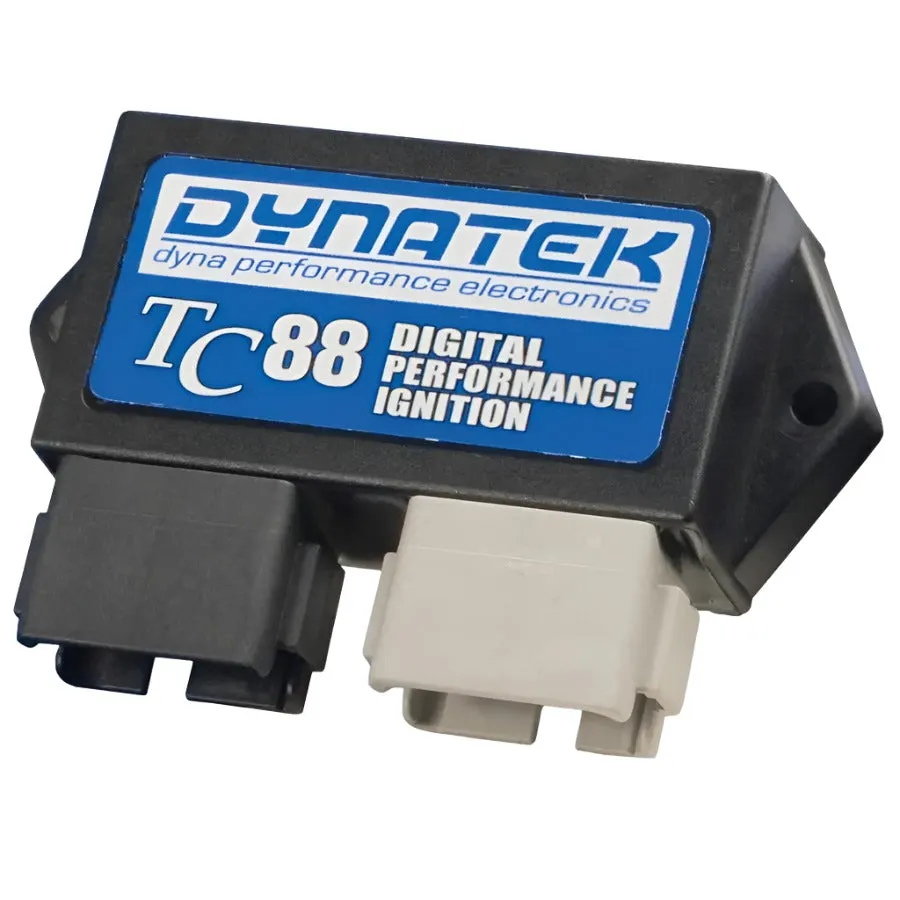

Programmable Digital Ignition Module - For '99-'03 FXD '99-'03 Big Twin Models
Thinking of timing tables? Are you after more adjustability on your ignition? No problem this ignition from Dynatek will get you going. This ignition is ultra adjustable and allows growth with not only the first mod but every mod after.
Features:
- Single-fire, fully programmable performance ignition
- Sixteen programmable advance curves in three groups: stock to slightly modified motors, heavily modified motors and insanely modified motors
- Eight rev limiter settings in 250 rpm steps from 5750-7250 rpm
- All functions offer full digital accuracy
- Compatible with stock and performance coils - less than 1 ohm resistance
- Coil current constantly monitored to provide constant full-spark energy
- Uses all stock sensors and connectors
- Built-in reverse battery and spike protection
- Data recording includes total engine hours, time wide-open throttle, longest time operating at wide-open throttle, max rpm, seconds near rev limit and number of engine starts
- PC programmability makes possible an eight-point, fully definable, wide-open throttle curve and a fully definable part-throttle curve, programmable rev limit in 50 rpm steps, 0-5 programmable dead-cranking revs, total of /- 10° rear cylinder offset, programmable rev limiter, and security lock out (pin # activated)
- Made in the U.S.A.
Note:
Not legal for sale or use in California on any pollution controlled motor vehicles.
