Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | PT 2X1 F-BE/FM |
| Approvals | UL Listed, EAC, EAC, DNV GL |
| Color | Black |
| Depth | 51.7 mm |
| Height | 44.8 mm |
| Mounting Type | DIN rail: 35 mm |
| Number of Positions | 2 |
| Screw Type | M3 |
| Stripping Length | 8 mm |

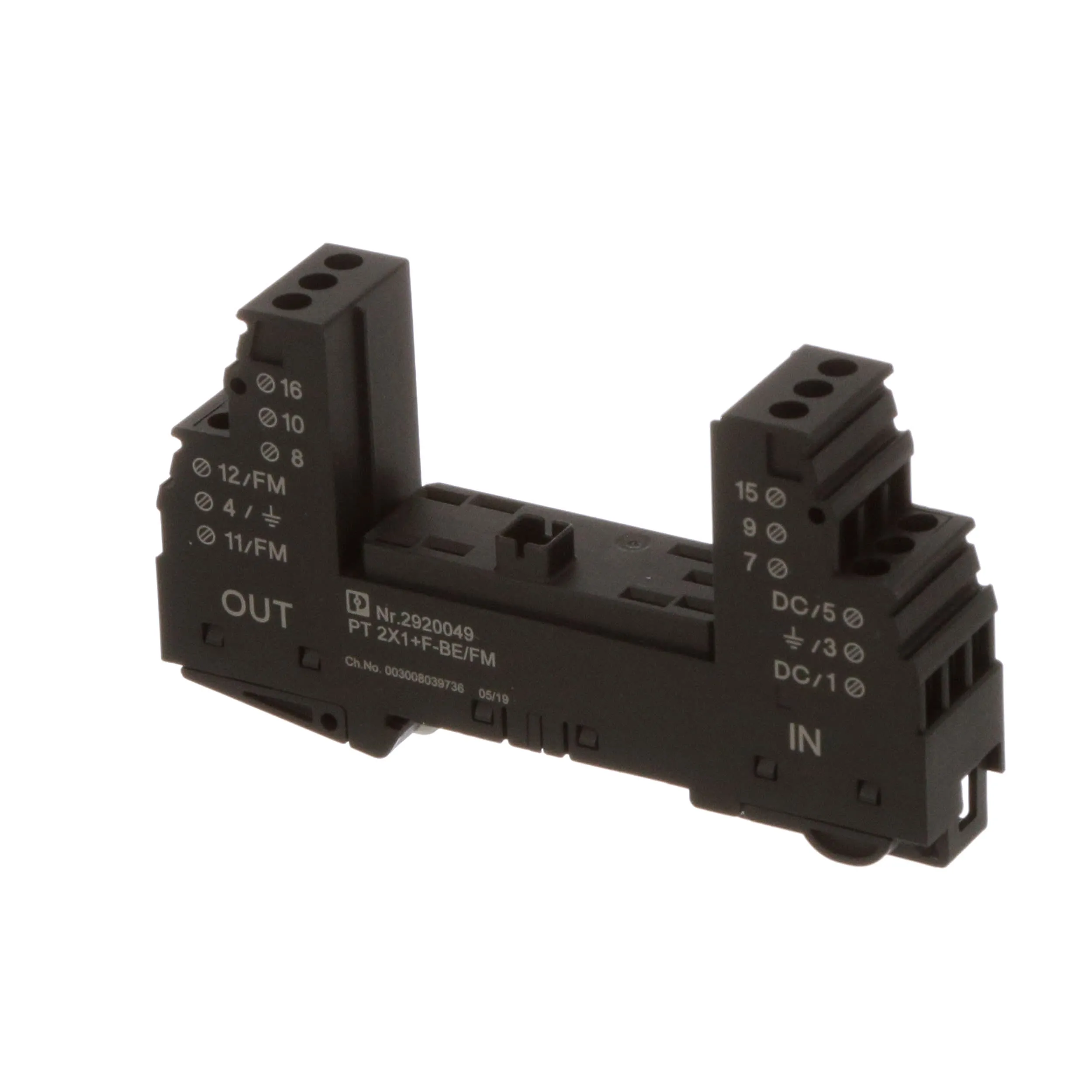

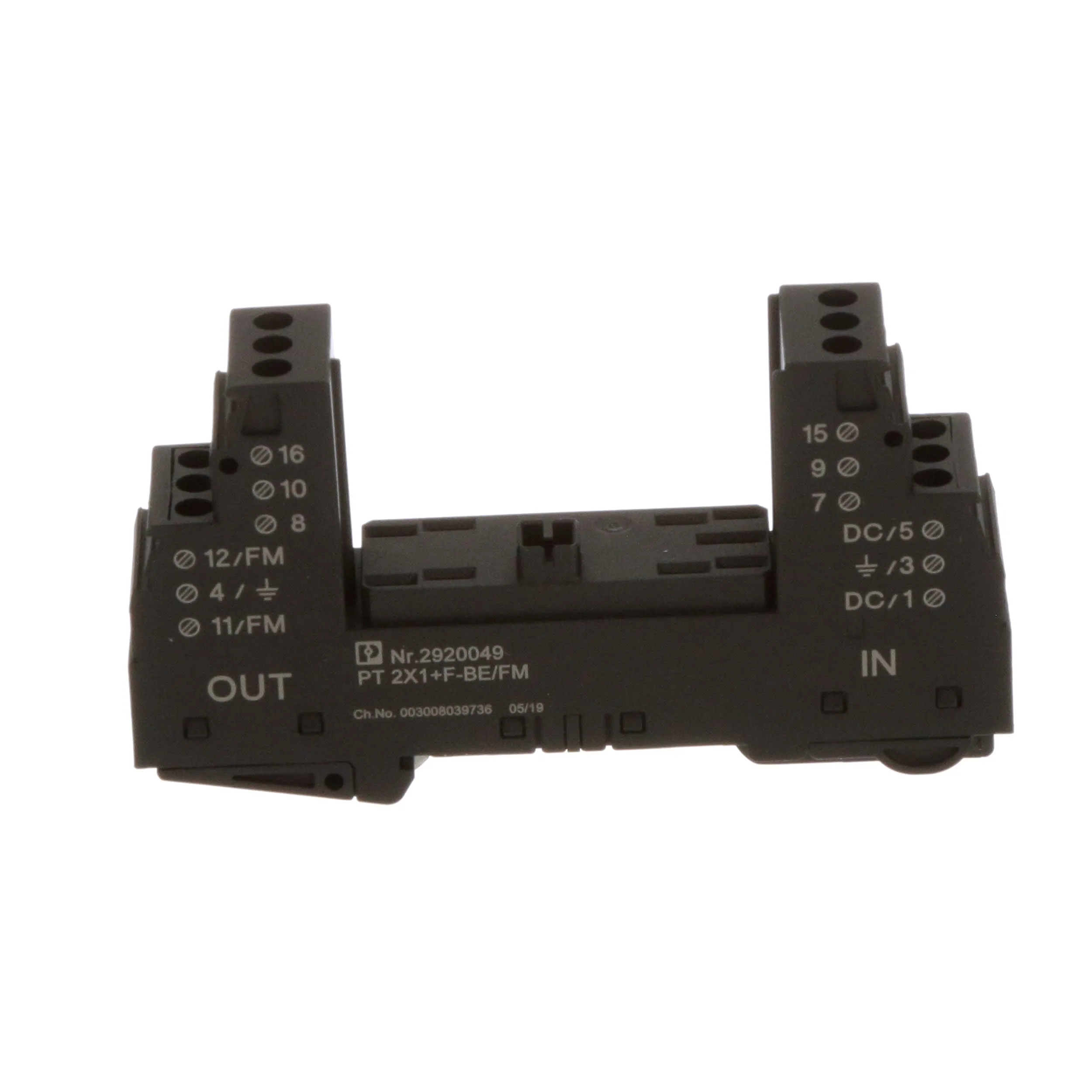

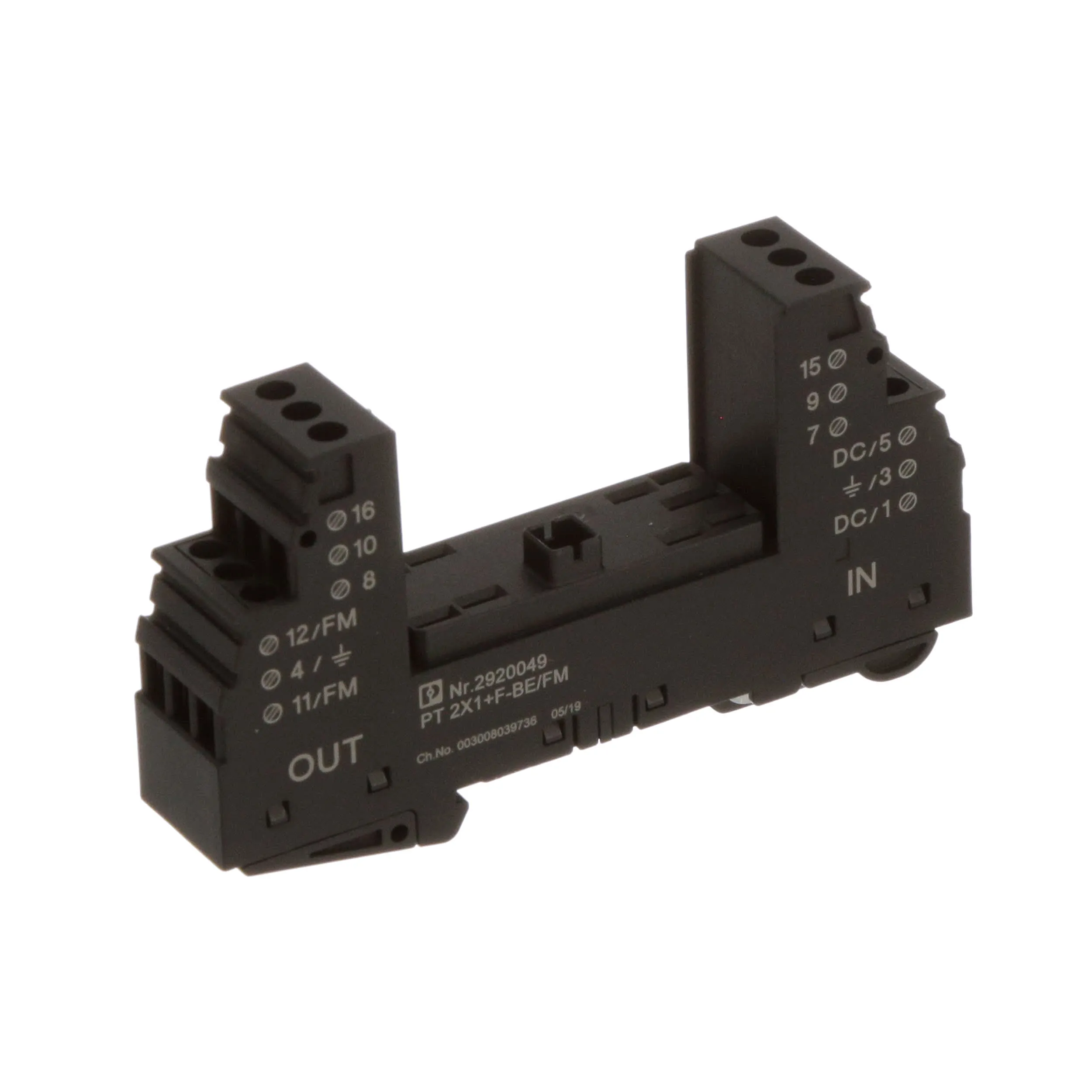

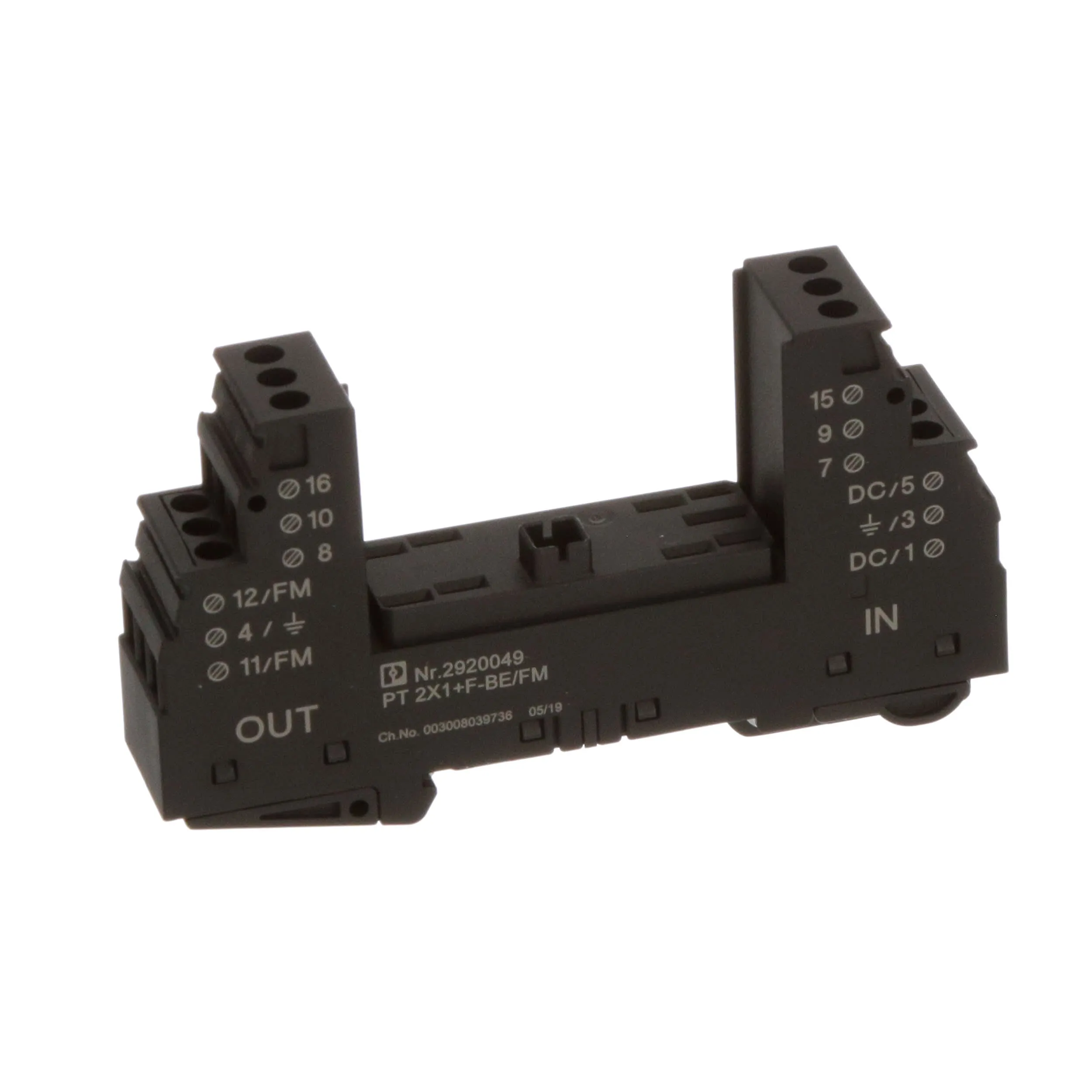

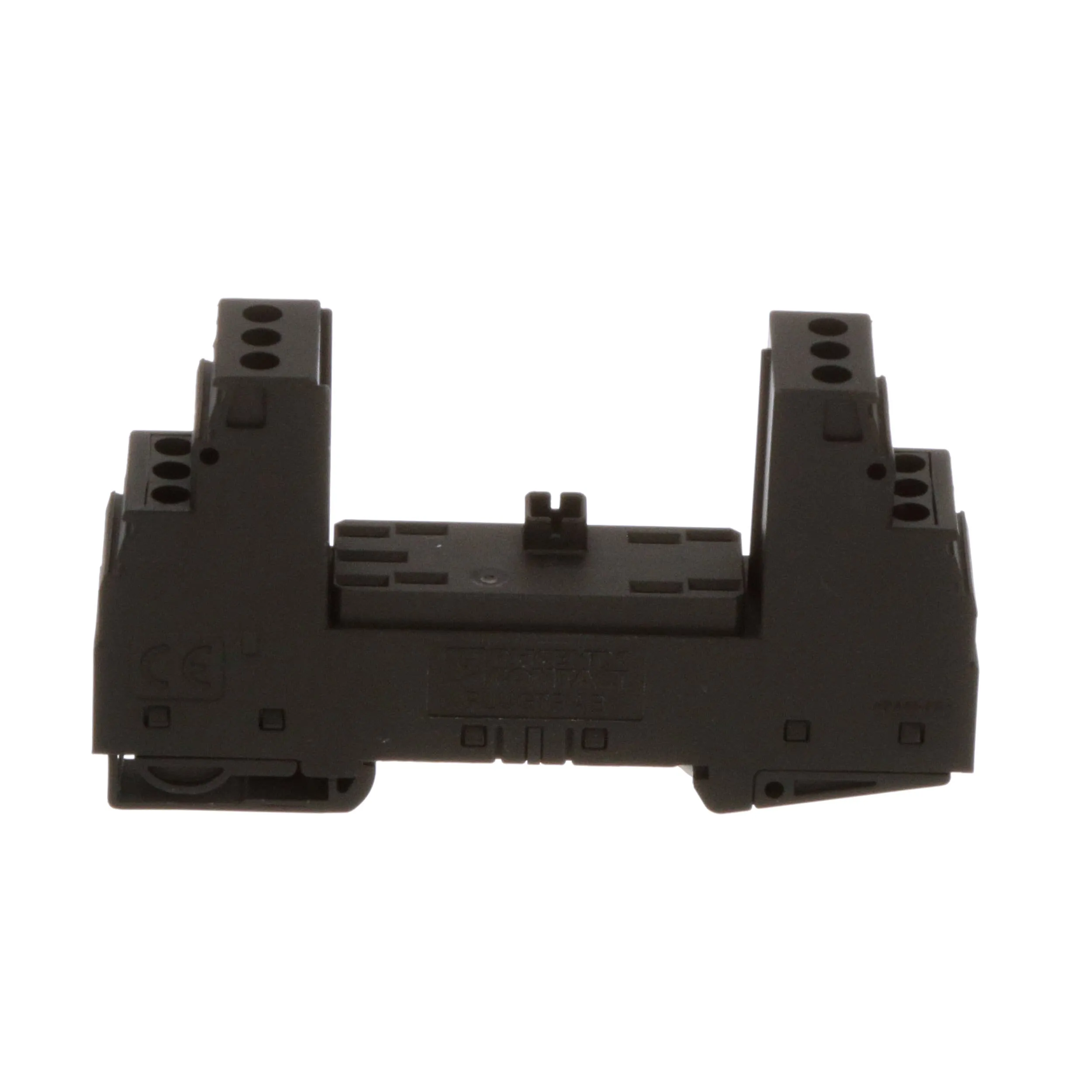

| Type | Base element, DIN rail mounting |
| UPC Code | 4046356154086 |
| Width | 17.5 mm |
Overview
PLUGTRAB PT- IQ Surge Protection Plugs
PLUGTRAB PT- IQ Intelligent and systematic surge protection plugs for the PLUGTRAB PT- IQ surge protection system. The PLUGTRAB PT- IQ protective systems has unique three stage display which indicates damaged as well as failed plugs. The three display stages are: Green - OK; Yellow - Performance limit reached and replacement recommended; Red - Overloaded and replacement required. The replacement PLUGTRAB PT-IQ Plugs are for both the direct and indirect grounding connection options.
