Product Details
+
- Long shelf life: self discharge rate less than 1% at 25°C.
- High energy density (700Wh/kg).
- Long operating life.
- Stainless steel container and end caps.
- Wide temperature range: -55ºC ~ 85ºC.
- Hermetic glass-to-metal sealing.
- Non-flammable electrolyte.
- Compliant with IEC86-4 safety standard.
- UL Component Recognition MH46165.
- High and stable operating voltage.
Suitable for applications including:
- Utility metering
- Alarm and security devices
- Memory backup power
- Professional electronics
- GPS tracking system
- Military system
- Automotive electronics
- Real-time clock

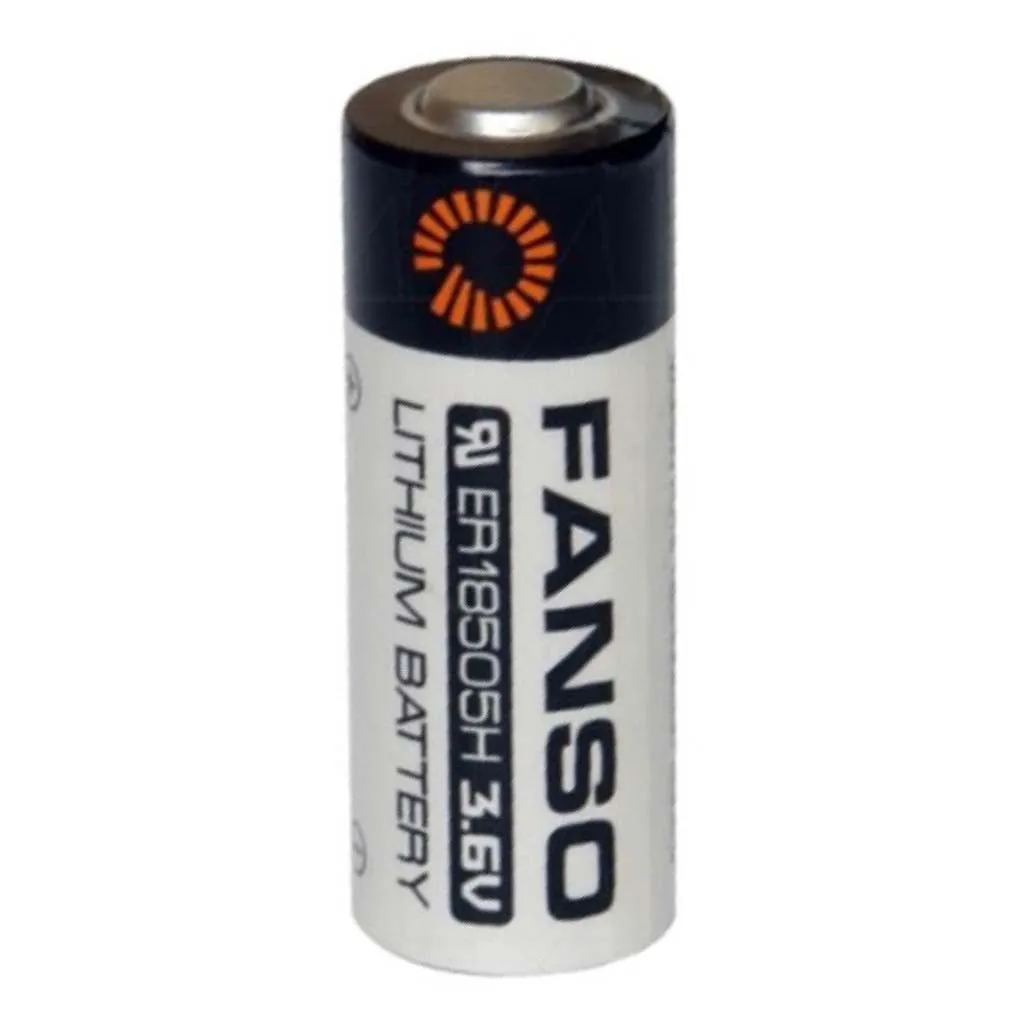

Specifications:
- Application: Memory Back Up (MBU)
- Chemistry: Lithium Thionyl Chloride
- Voltage: 3.6V
- Watt Hour: 14.4Wh
- Nominal Capacity: 4Ah
- Maximum Continuous Discharge Current: 70mA
- Maximum Pulse Discharge Current: 180mA
- Size: FAT A
- Width: 18.5mm
- Height: 50.5mm
- Weight: 28g
