Product Details
＋

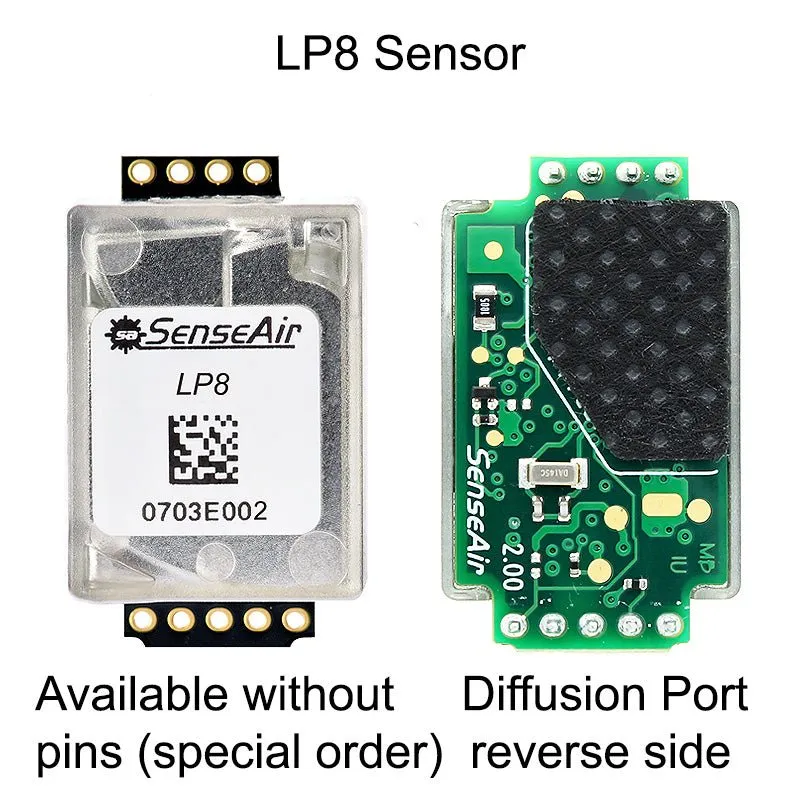

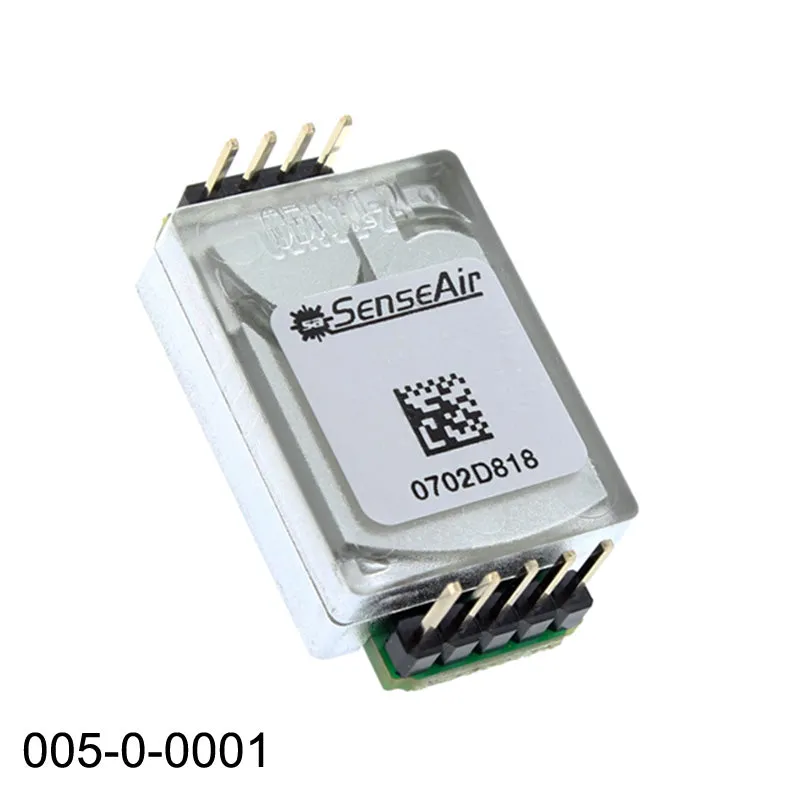

The 005-0-0001 LP8 miniature 10,000 ppm CO2 sensor (formerly known as SE-0038) is designed to monitor up to 10,000ppm CO2 concentrations in long-term battery or solar-powered applications.
Features
- Ultra-small footprint NDIR sensor
- One measurement requires only 11.9 mJ of energy
- Designed for long-term battery operation
- Variable measurement period to save energy
A wide range of voltages (2.9-5.5V) enables a variety of power options. For example it can be powered by 3 alkaline 1.5V batteries, or a single 3.6V Li-SOCl2 battery for a more compact alternative.
Models
- 005-0-0001 LP8 Sensor Only - for integration into high-volume OEM products. for wholesale pricing on large quantities of this sensor.
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Range: 0-10,000ppm CO2
- Accuracy: ± 50ppm, ± 3% of reading
- Response Time: 30 seconds
- Measurement Method: Diffusion
- Measurement Period: >15 seconds
- Available Output: Digital only
- Communication: UART (host-slave protocol)
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check on startup
- Dimensions: 32.7 × 19.7 × 8 mm (LxWxH)
-
Weight: <8 grams
- Sensor Life Expectancy: >15 years
Electrical / Mechanical
- Power Input: 2.9-5.5 VDC
- Max Current: 0.6 mA
- Charge per measurement: 3.6mC
- Energy per measurement: 11.9mJ @ 3.3V
Warranty
- 90 days - See CO2Meter Terms and Conditions
